85%
Reduction in repairs & maintenance
45%
Lower total life cycle costs
50%
Reduction in pavement settlements
35%
Thinner asphalt layers required
5×
Extended pavement service life
80+
Countries with successful projects
SoilSmart Engineering Ltd is the authorized partner of PRS Geo-Technologies Ltd in Nigeria — the global inventor of the Neoloy® Tough-Cell, a revolutionary three-dimensional honeycomb soil stabilization system made from a Novel Polymeric Alloy (NPA).
Unlike conventional geocells made from HDPE, Neoloy® provides unmatched dynamic stiffness, tensile strength, and creep resistance — the properties demanded by large infrastructure projects. Over 115 professional research papers have validated its performance, and it complies with ASTM, ISO, and international pavement standards.
Since 1996, PRS has deployed Neoloy in 1,000s of projects across 80+ countries — from Arctic tundra to tropical jungles — working alongside engineering giants like WSP, Skanska, Bechtel, the UN, and armed forces of multiple nations.

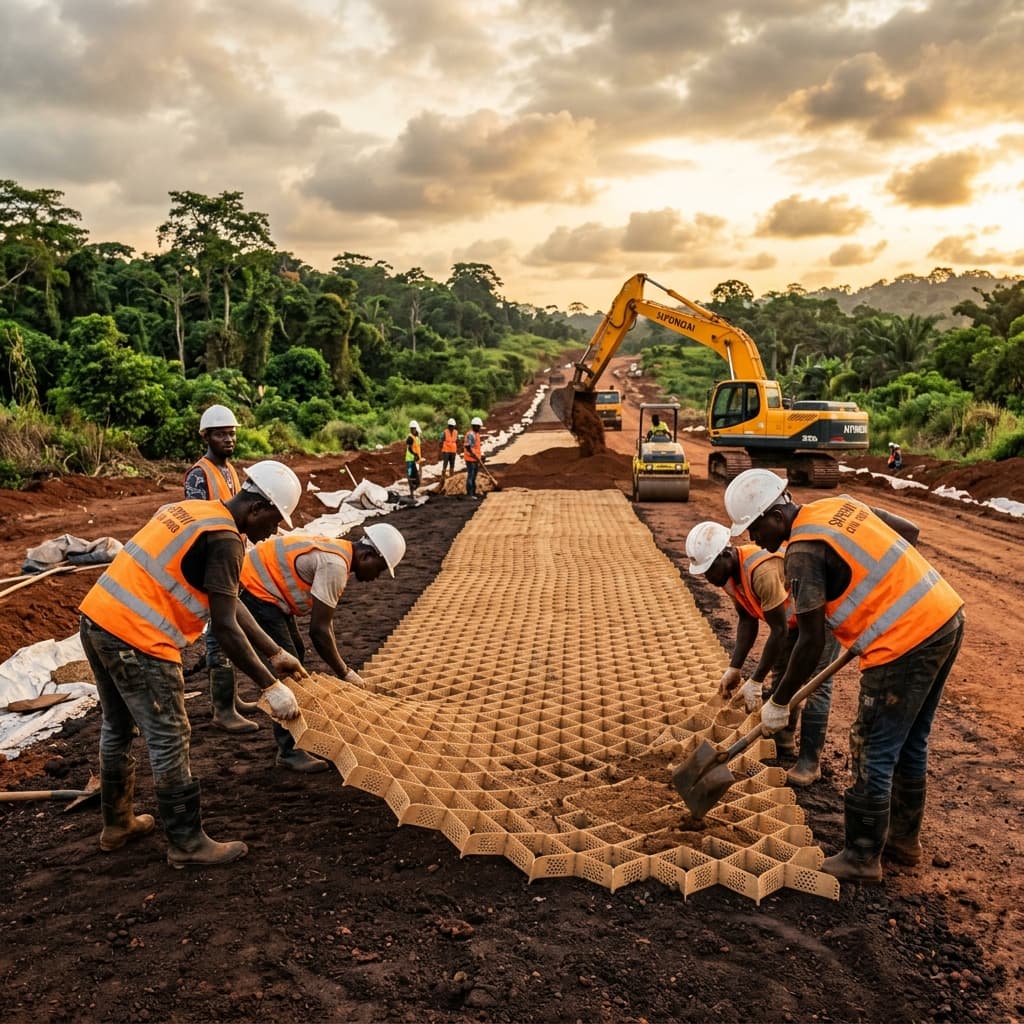

A three-layer system that transforms weak subgrades into strong, durable infrastructure at a fraction of conventional costs.

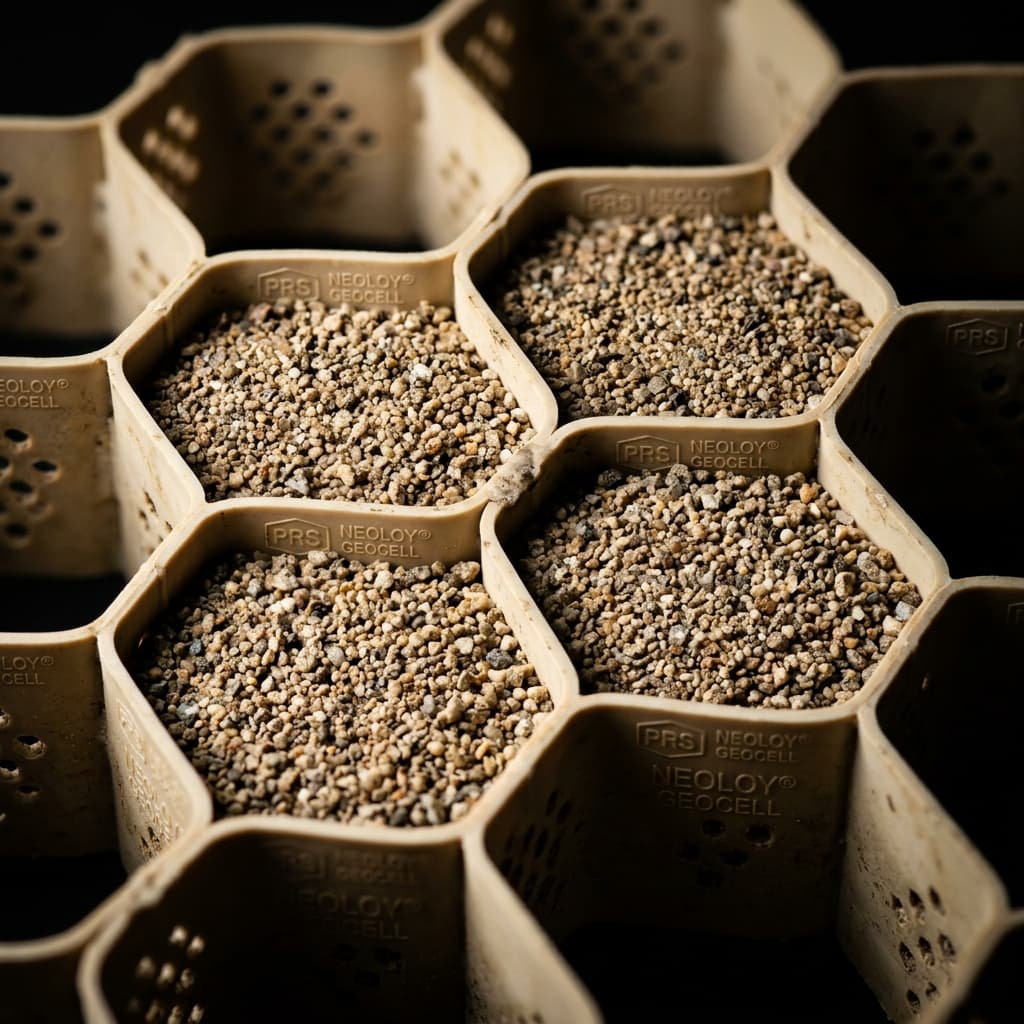

The honeycomb cellular structure laterally confines infill soil — even locally available sand or marginal soils — turning weak material into a high-modulus load-bearing layer.
Interconnected Tough-Cells create a stiff semi-rigid slab that distributes vertical loads horizontally, dramatically reducing point pressure on soft subgrades below.
The Novel Polymeric Alloy resists creep, UV degradation, and chemical exposure — maintaining its engineering properties for the full design life of your project.
Works with in-situ sand, recycled aggregate, or marginal soils as infill — eliminating expensive quarried stone imports and dramatically cutting carbon footprint and costs.
Conventional Design — 625mm
25mm Wearing Course
50mm Binder Course
150mm Crushed Stone Base
150mm Cement-Stabilized Sand
250mm Sharp Sand Subbase
Subgrade CBR ≥5%
PRS Neoloy® Design — 355mm
25mm Wearing Course
50mm Binder Course
80mm Crushed Stone Base
200mm PRS-Neoloy 330-120-C with Sand Infill
Subgrade CBR ≥5%
— Layer eliminated —
43% thinner pavement structure · Local sand infill · Same or better load capacity · Significantly lower construction cost

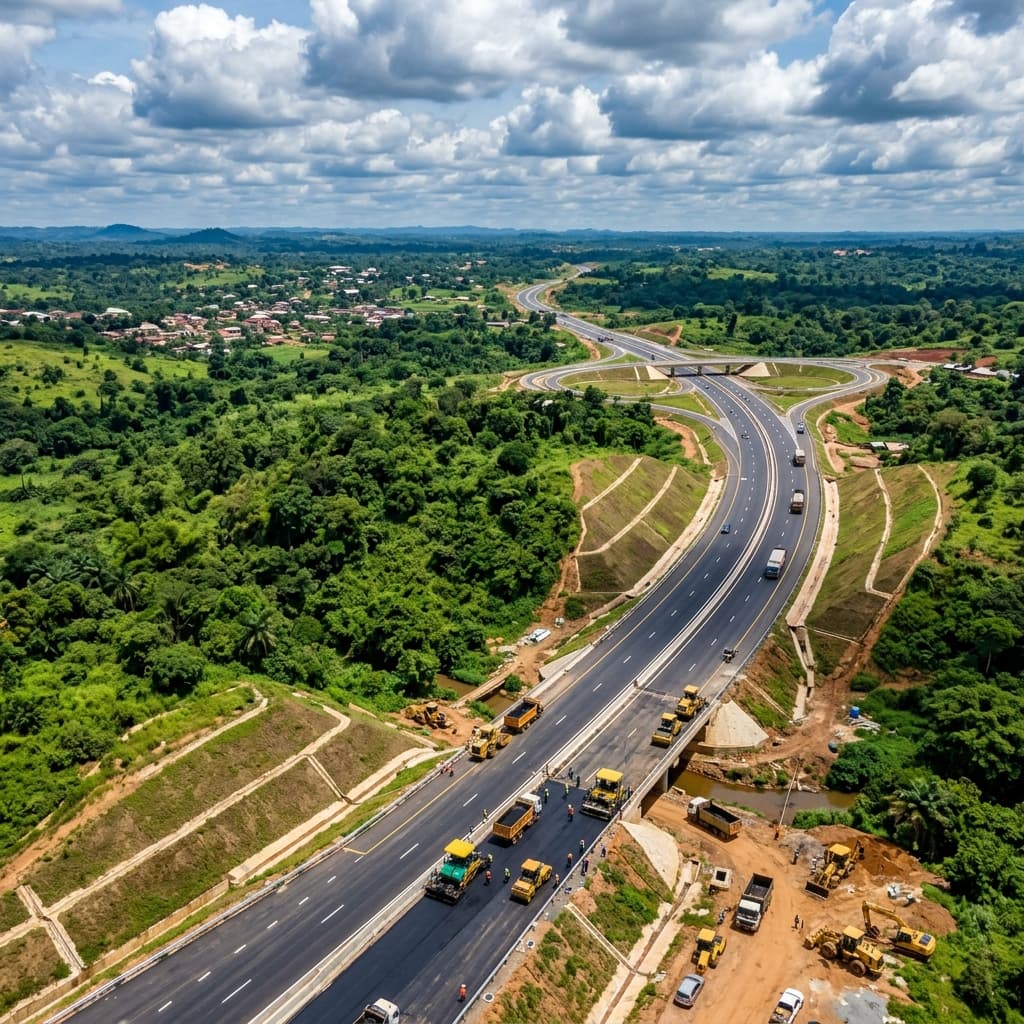

From rural feeder roads to international airports, PRS Neoloy® Tough-Cells solve the toughest ground engineering problems — particularly the soft, laterite-rich subgrades common across Nigeria's south and north-central zones.
Highways & Roads
Reinforced subbase layers enable thinner asphalt, lower costs, and 2–5× longer lifespan on soft Nigerian subgrades.
Railway Stabilization
Proven on Amtrak (USA), Israel Railways, PKP Poland, and Transnet (South Africa) — reducing maintenance cycles by 3–7×.
Ports & Wharfs
Heavy-duty platform reinforcement for container yards, cranes, and quay construction on soft, compressible soils near water.
Airfield Pavements
Deployed at the New International Airport of Mexico City and multiple UNOPS airstrips — meeting the highest load-bearing requirements.
Slopes & Embankments
Erosion control and slope protection on motorways and mine sites — up to 55° gradient, with optional vegetation for green aesthetics.
Industrial Platforms
Stabilized working platforms for oil & gas compressor pads, coal stockpiles, and heavy industrial equipment foundations.
Our multidisciplinary team of certified geotechnical engineers, environmental scientists, and structural analysts brings decades of combined experience to every project — combined with the world's most advanced soil stabilization technology as the official PRS Neoloy® partner in Nigeria.
PRS Neoloy® has been deployed on some of the world's most challenging infrastructure projects — delivering measurable results on every continent.
Neoloy Tough-Cells reinforced problematic expansive clay sections of Amtrak's Northeast Corridor, reducing the maintenance cycle 7× compared to conventional methods.
Client: Prof. Allan M. Zarembski, University of Delaware
After extensive field testing on CBR <1% soils, Neoloy was the only qualified solution. It met and exceeded all pavement requirements for the airport apron using volcanic rock infill.
Client: Ancora Ingeniería — Eng. Mario Iruegas Evaristo
200+ km of feeder roads and airstrip rehabilitation on black cotton soil in remote areas — using local soil infill where aggregate was unavailable. Completed ahead of schedule.
Client: William Muchira, Project Manager, UNOPS
Stabilized extremely problematic soils (including 3m-deep mining holes) for a high-capacity container yard. Improved bearing capacity 6× and reduced concrete layer thickness by 30%.
Client: Balticon & MTM SA
9.2 km strategic road built under fire with 75% less aggregate, using local desert fill. Performance exceeded all expectations. Reduced road cost by 1/3 while saving lives.
Client: Lt. Col. M T G Bazeley, 28 Engineer Regiment
Dual Neoloy layers transformed a failing peat yard (CBR=1%) into a high-capacity heavy operations platform. Estimated annual savings: $750M in production + $250K in fuel/maintenance.
Client: Confor Canada
From preliminary soil surveys to full geotechnical reporting and advanced soil stabilization deployment, we support every phase of your construction project.
Comprehensive soil investigation, borehole drilling, laboratory testing, and geotechnical reporting for construction projects of any scale.
Independent structural integrity assessments, load analysis, and remediation recommendations for existing and new structures.
Phase I & II environmental site assessments, soil contamination testing, and remediation planning in compliance with Nigerian and international standards.
Specialized foundation design consultation — shallow, deep, pile, and raft foundations tailored to actual soil bearing capacity data from your site.
Preparation of geotechnical and environmental reports meeting FCDA, state ministry, and international standards.
On-site geotechnical supervision, quality assurance, and construction monitoring services throughout the full project lifecycle.
Design and supervision of road pavement structures using advanced soil stabilization methods including PRS Neoloy® Tough-Cells technology.
Slope protection, erosion control systems, channel lining and drainage engineering for highways, embankments, and waterside infrastructure.
Material
Polymeric Nano-Composite Alloy (NPA)
Net Elastic Modulus
>525 MPa @ 60°C · >750 MPa @ 45°C
Tensile Strength
>19 kN/m (strip tensile)
Permanent Deformation
<3% at 60°C — 75-year design life
UV Resistance
Certified for full design life exposure
Thermal Expansion
CTE ≤120 ppm/°C
From American universities to UN agencies and armed forces — real outcomes on the world's toughest sites.
“PRS-Neoloy reinforcement proved to be effective in reducing degradation, showing a reduction in the surfacing (maintenance) cycle on the order of seven (7) times.”
Prof. Allan M. Zarembski PhD, PE FASME
Director, Railroad Engineering & Safety Program — University of Delaware (Amtrak Northeast Corridor, USA)
“The PRS-Neoloy Tough-Cells was the only qualified solution that not only met, but exceeded, all our project requirements. The PRS-Neoloy exhibited high elastic stiffness, resistance to permanent deformation and high tensile strength, which are critical for pavement applications.”
Eng. Mario Iruegas Evaristo
CEO, Ancora Ingeniería — New International Airport, Mexico City
“PRS Neoloy Geocells proved to significantly increase the maintenance periods. Since the installation of this product in 2012 we did not need to perform any maintenance services. We wholeheartedly recommend PRS Neoloy Geocells as the most cost-effective soil containment solution in the market.”
Shuki Sagy, V.P.
Israel Shipyards Ltd. — Port of Haifa, Israel
“Solutions provided by PRS Geo-Technologies could be replicated in other parts of the country where similar challenges are encountered. PRS Geo-Technologies demonstrated fast delivery, excellent technical support, and responsive and professional service.”
William Muchira
Project Manager, EU ZB Project — UNOPS South Sudan Country Office
Tell us about your project and our team will respond within 24 hours with a tailored proposal. Walk-in enquiries also welcome at our Abuja office.
